GoDEX RT863i is the industry’s first 600dpi high-resolution desktop bar code printer. It is certified by the Taiwan Excellence Award. It is equipped with a 3.2-inch LCD screen, a touch-sensitive operation interface, and innovative and easy-to-use methods to enhance your efficiency needs.
High quality and high efficiency
3ips(76.2mm/s)
Equipped with: USB, serial and network ports, and can support external USB devices, stand-alone operation is more practical; optional: cutter, peeler, external paper roll holder, external/reverse rewinder.
Medical industry, jewelry industry, electronics industry, logistics industry, manufacturing industry, tourism industry, etc., multi-industry applications, tailor-made for you.
The so-called offline operation mode refers to a way for the barcode printer to disconnect from the computer and perform unilateral call label printing. The RT863i barcode printer can complete the offline call function and directly store the edited template to the RT863i. Use an external U disk to store more templates, and also have two input devices: keyboard & scanner.

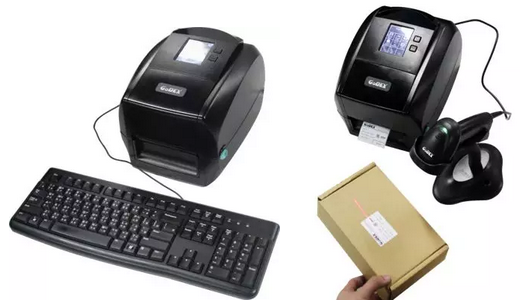

As shown below:
When you connect the keyboard to the RT863i (left picture), you can find the called template on the printer screen, and you can input the required data on the label through the keyboard to achieve both repair and print functions. When you connect the scanner to the RT863i (pictured on the right) and find the called template, you can scan and print by scanning the bar code. The above two methods have the same advantages as each other. The user solves the problem of work efficiency.
Print Method | Thermal Transfer / Direct Thermal |
---|---|
Resolution | 600 dpi |
Print Speed | 3 IPS (76.2 mm/s) |
Print Width | 4.16” (105.6 mm) |
Print Length | Min. 0.16” (4 mm)** – Max. 15” (381 mm) |
Processor | 32 bit RISC CPU |
Memory | 128 MB Flash (60 MB for user storage) / 32 MB SDRAM |
Sensor Type | Fixed transmissive sensor, central aligned Adjustable reflective sensor (full range) |
Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 0.79” (20.0 mm) – Min. - 4.64” (118 mm) Max Thickness: 0.003” (0.06 mm) Min.; 0.08” (0.20 mm) Max Label roll diameter: Max. 5” (127 mm) Core diameter: 1 ” (25.4 mm) |
Ribbon | Types : Wax, wax / resin, resin Ribbon Length : 984.25’ (300 m) Ribbon Width : 1.18” Min. - 4.33” (30 mm - 110 mm) Max. |
Ribbon Roll Diameter : 2.67“ (68 mm) Core Diameter :1” (25.4 mm) | |
Printer Language | EZPL, GEPL, GZPL auto switch |
Software | Label design software: GoLabel (for EZPL only) Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 &2012、 MAC、 Linux |
Dll: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10/ Android | |
Resident Fonts | Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions |
TTF fonts:TTF fonts (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatabl | |
Download Fonts | Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts: 90°, 180°, 270° rotatable |
Barcodes | 1D Barcodes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart |
2D Barcodes :Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39 | |
Code Pages | CODEPAGE 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, |
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 | |
Unicode UTF8、UTF16BE、UTF16LE | |
Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
Interfaces | Serial port: RS-232 (DB-9) |
USB Device port (B-Type) | |
IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) | |
USB Host (A-Type) | |
Parallel Port (Mini-Centronics) | |
Control Panel | Backlight 3.2" Touch Screen LCD, |
Calibration button, | |
Control Key : FEED , | |
Power on/standby button | |
Real Time Clock | Optional |
Power | Switching power 100-240VAC, 50-60Hz input |
Environment | Operation Temperature 41°F to 104°F (5°C to 40°C), |
Storage Temperature -4°F to 140°F (-20°C to 60°C) | |
Humidity | Operation 25-85%, non-condensing, |
Storage 10-90%, non-condensing. | |
Agency Approvals | CE (EMC)、FCC Class A、CB、UL、cUL |
Dimension | Length 11.0” (280 mm) |
Height 7.7” (195 mm) | |
Width 8.3” (210 mm) | |
Weight | 5.9 lbs (2.7 Kg) ,excluding consumables |
Options | Label dispenser, |
Cutter, | |
External label unwind Stand, | |
External label rewinder, | |
Bluetooth, | |
Wireless LAN (IEEE 802.11 b/g/n), | |
Real Time Clock (RTC) | |
Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
